Refrigerator Unit Cooler Wall Mounted For Cold Room, Air Cooled Condenser, Cold Room Evaporator

Short Description:

    Ceiling type unit cooler     CSCpower unit coolers / evaporators can be widely used in various kinds of fresh-keeping and refrigeration cold-rooms..food processing workshops and logistics centers.Our compact and | reliable design can help customers make use of space maximally.When equip with low noise axial fan.you can rapidly reduce | noise level of working space and highly increase comfort level. Refrigeration capacity of this series covers from 1.2KW to 114KW  .f...


  • Product name: : evaporator for cold room
  • Color: : Silver
  • Application: : Cooling
  • Feature:: Heat Transfer Technology
  • Voltage: : 380V-440V/3Ph/50HZ-60HZ
  • Application: : Cold room,refrigeration equipment
  • Mounting: : Wall Mount
  • Product Detail

    Product Tags





    Ceiling type unit cooler





    CSCpower unit coolers / evaporators can be widely used in various kinds of fresh-keeping and refrigeration cold-rooms..food processing workshops and logistics centers.Our compact and | reliable design can help customers make use of space maximally.When equip with low noise axial fan.you can rapidly reduce | noise level of working space and highly increase comfort level. Refrigeration capacity of this series covers from 1.2KW to 114KW  .fitting fir different refrigerant such as R134a,R404A .R507A . R407 .C.R22.



    Characteristics
    ♦Scientific structure , high efficient , frost steadily , save power and low running cost ;

    ♦Equip with axial fan quiet models that offer strong air flow in long shot rang ; save power, long service life ;

    ♦Copper pipe thickness can reach to 0.6mm. which lead to perfect tightness between pipe and fin after expansion processing,

    ♦Equip with stainless electric heater in high insulating property,defrost efficiently in shot time i

    ♦The heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.

    ♦Aluminum and painted stain board, to meet your different

    needs.

    Sphere of application
    ♦High temperature type: (cold room temperature 12-2″C)fin space: 4.5mm;

    ♦Medium temperature type: (cold room temperature -2℃ — 1 0 ℃)) fin space: 6.0mm;

    ♦Low temperature type: (cold room temperature– 10〜-3 1℃ )fin space: 9.0mm;

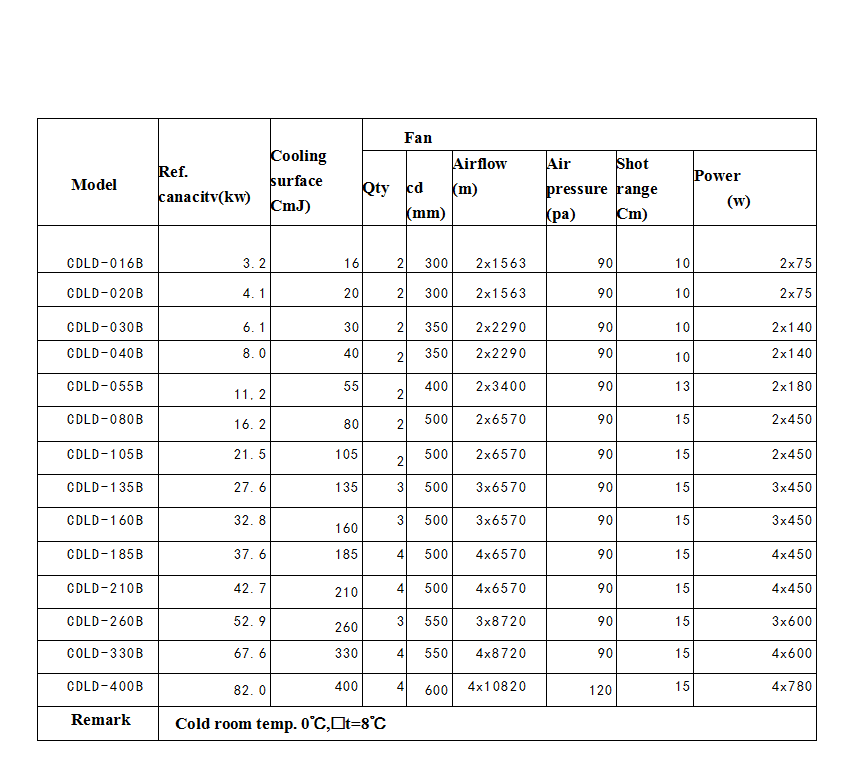

    Technical data

    air cooler technical data
